Wide Medium¶
Scope¶
The document introduces how to drive the e-paper displays (EPD) with the new generation driver chip.
They include the 5.8” and 7.4” inch.
Overview¶

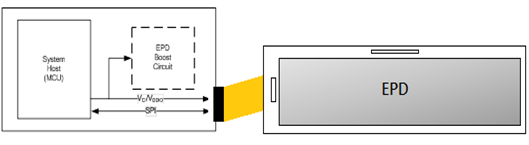

The EPD has an internal timer controller (iTC) and uses SPI as the main control interface.
The host sends both the setting commands and the display image to the driver through the SPI bus.

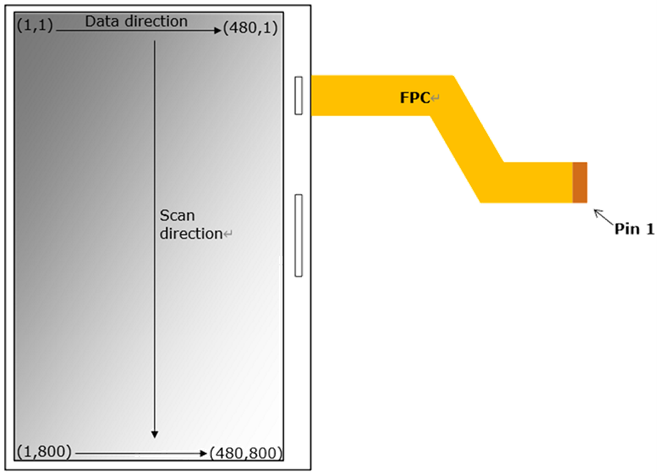

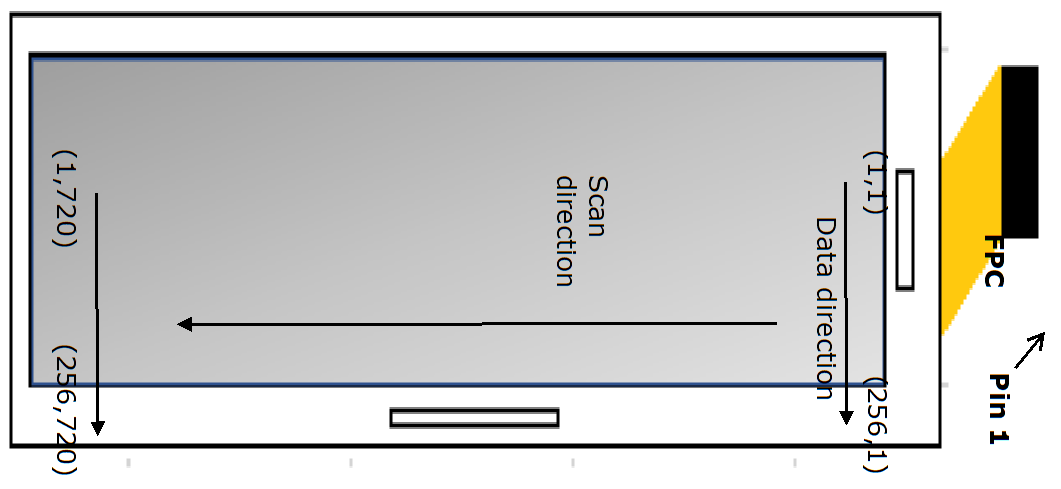

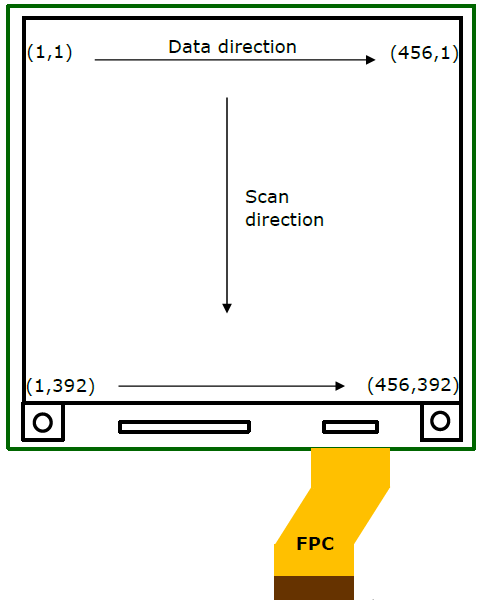

Panel drawing¶
5.81”
7.41”
