Hardware Installation Procedure

Info

You may also consult the detailed assembly process at EXT3-Touch

You may also consult the detailed mounting assembly process at

1. Identify the different parts

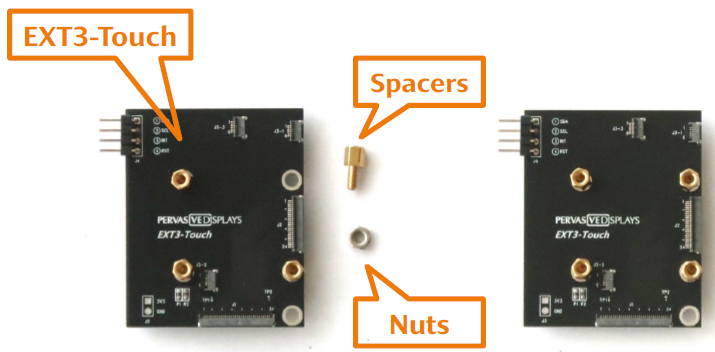

2. Fix the spacers and nuts to the EXT3 Touch

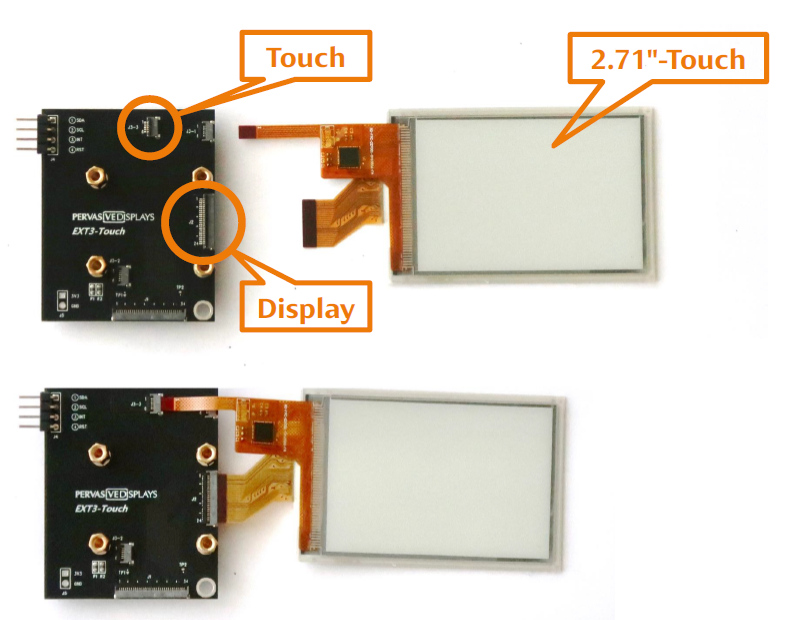

3. Connect the screen and touch flat cables to the EXT3 Touch board. Insert the flat cables into the ZIF connectors.

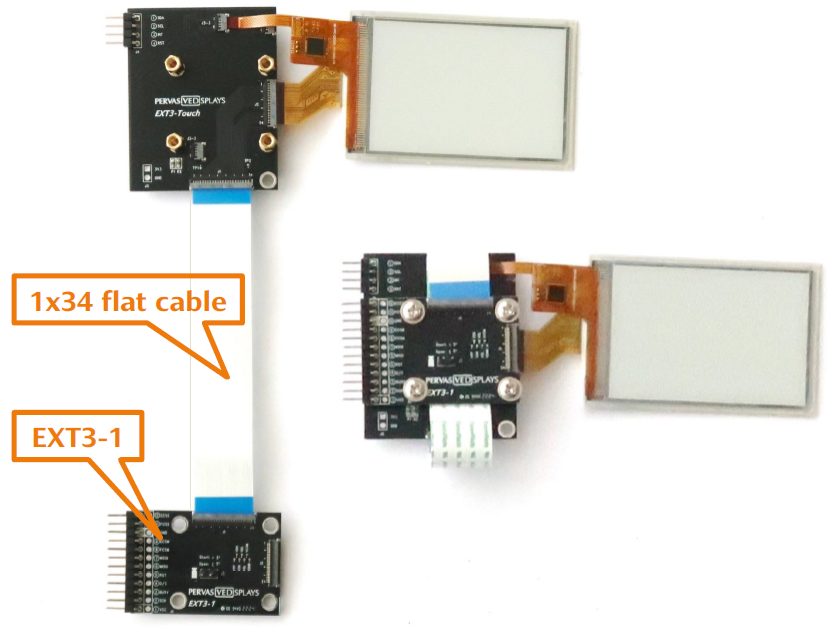

4. Connect the flat cable to the EXT3-1 and EXT3 Touch boards

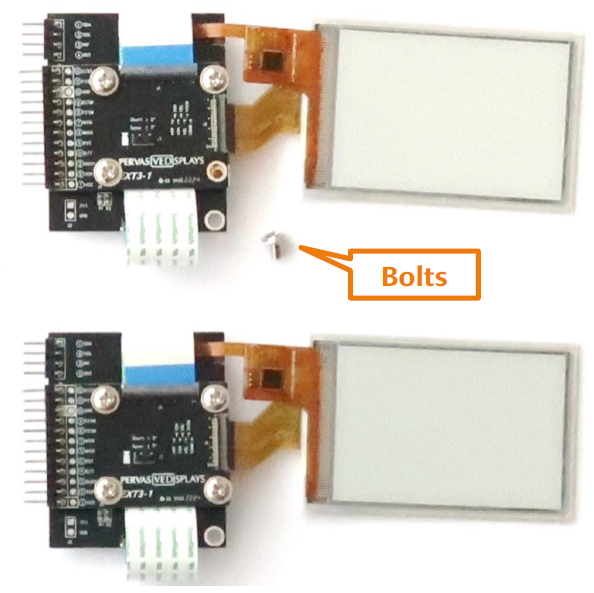

5. Place the EXT3-1 on top of the EXT3 Touch and screw the bolts

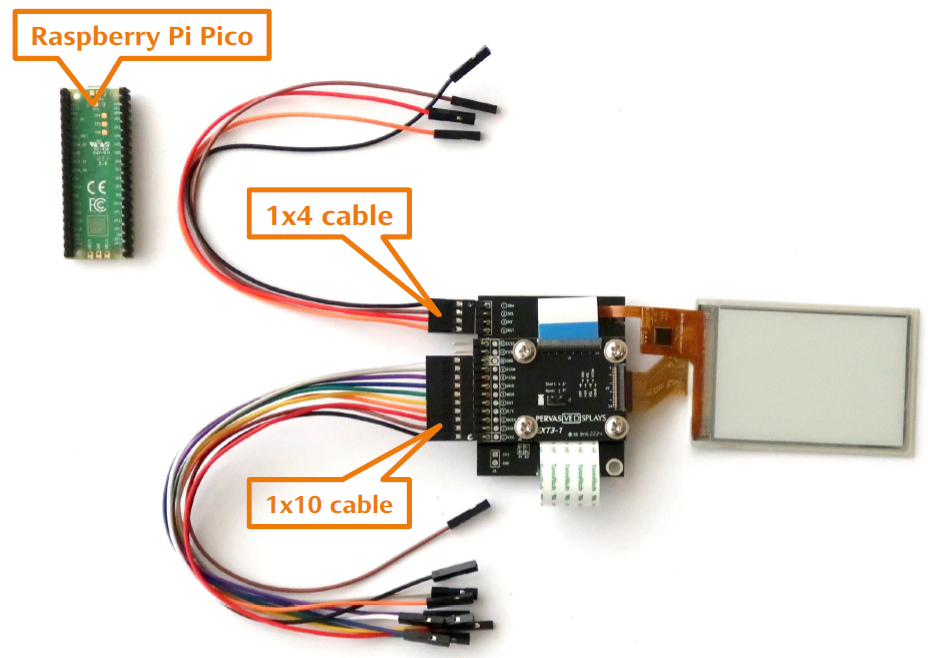

6. Connect the 1x10 and 1x4 cables to the EXT3-1 and EXT3 Touch boards
7. Connect the 1x40 and 1x4 cables to the Pico board
