Driver installation

The driver library manages the panel and the board: it sends the image from the frame-buffer to the screen and refreshes the panel.

Warning

Ensure the hardware and software configuration meets the requirements listed at the Used environment page.

Install the drivers

Different procedures are available to install the drivers: using the Arduino IDE, using Arduino CLI, or downloading from the GitHub repository.

This section is required only if the drivers haven’t been installed as dependencies of the PDLS_Basic library.

  • Launch the Arduino IDE;

  • Call the menu Sketch > Include library > Manage libraries…;

  • Search for Driver_EPD;

  • Select the Pervasive_Wide_Small library for monochrome screens with wide temperature and embedded fast update, small size;

  • Select the Pervasive_Wide_Medium library for monochrome screens with wide temperature and embedded fast update, medium size;
  • Select the Pervasive_Wide_Large library for monochrome screens with wide temperature and embedded fast update, large size;
  • Select the Pervasive_BWRY_Small library for colour black-white-red-yellow screens, small size;

  • Select the Pervasive_Touch_Small library for touch monochrome screens, small size;

  • Click on Install to install it.

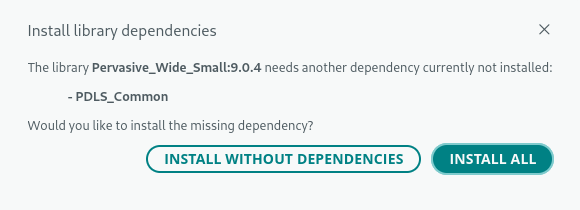

The IDE prompts to install the dependencies.

  • Click on Install all. This is the recommended procedure.

The Arduino IDE downloads and installs the library and all its dependencies, including PDLS_Common and the drivers.

  • Proceed directly to the next step, Check.

Otherwise, for Install without dependencies,

  • Select and install PDLS_Common;

  • Proceed to install the required drivers.

  • Open a terminal window;

  • Launch for the Pervasive_Wide_Small driver:

bash dollar lines="1" arduino-cli lib install Pervasive_Wide_Small Downloading Pervasive_Wide_Small@9.0.2... Downloaded Pervasive_Wide_Small@9.0.2 Installing Pervasive_Wide_Small@9.0.2... Installed Pervasive_Wide_Small@9.0.2 Downloading PDLS_Common@9.0.2... Downloaded PDLS_Common@9.0.2 Installing PDLS_Common@9.0.2... Installed PDLS_Common@9.0.2

  • Perform the same procedure for the other drivers.
Driver Content
Pervasive_Wide_Small Monochrome screens with wide temperature and embedded fast update,
small size
Pervasive_Wide_Medium Monochrome screens with wide temperature and embedded fast update,
medium size
Pervasive_Wide_Large Monochrome screens with wide temperature and embedded fast update,
large size
Pervasive_BWRY_Small Colour black-white-red-yellow screens,
small size
Pervasive_Touch_Small Touch monochrome screens,
small size

Check

Example

The example below targets the screen 271-KS-09 and the board Raspberry Pi Pico (RP2040).

  • Launch the Arduino IDE.

  • Call the menu Tools > Boards… to select a board.

  • Call the menu File > Examples > Pervasive_Wide_Small > Demo_New.

  • Ensure the driver library is included.

``` cpp

include “Pervasive_Wide_Small.h”

```

  • Edit the lines and set the correct screen and board.

cpp Pervasive_Wide_Small myDriver(eScreen_EPD_271_KS_09, boardRaspberryPiPico_RP2040);

  • Click on Verify or Build.

The screen should display

See also

  • Select one of the boards;

  • Set the configuration of the screen;

  • Use the different graphics and text functions;

  • Refer to the reference manual for an exhaustive list of the functions with details of the parameters and returned values.
