EXT3-Giant¶

Connector board¶

If you have our EXT3-Giant kit, there are extra items as follows:

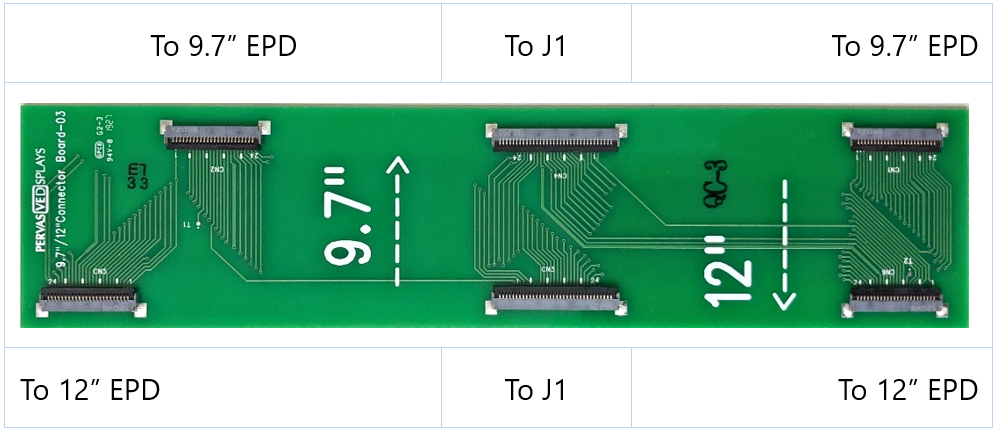

Connector board PCBA for connecting with 9.7” or 12” EPD
34-pins of FFC

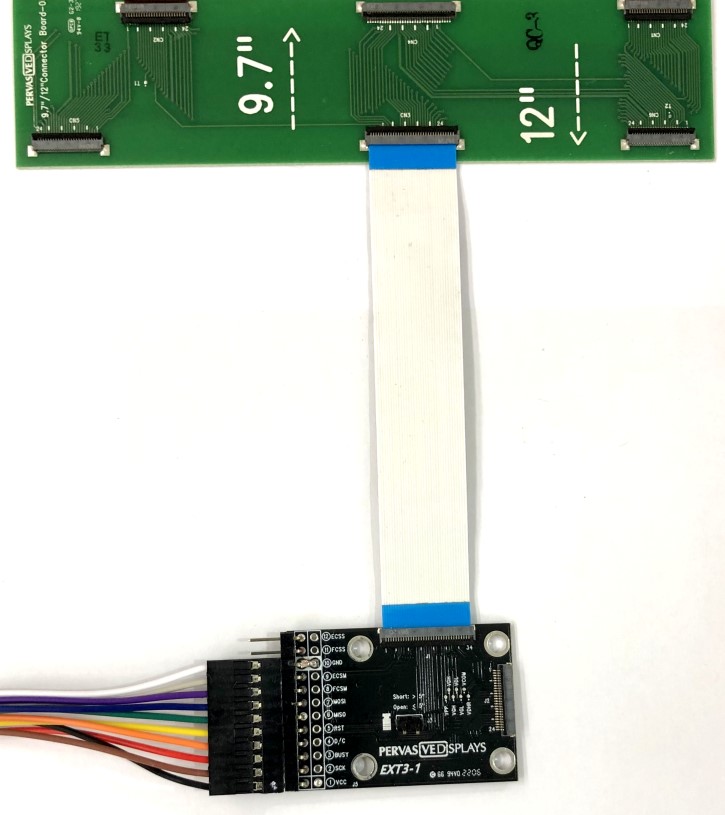

To work with 9.7” or 12”, the connectivity between EXT3-1 (or EXT3) board and Connector board is like the picture below.

Info

Pinout connections to the Raspberry Pi Pico can be found here. Also include the ECSS pin connection which is not shown below.

34-pins of FFC between EXT3-1 (or EXT3) board and Connector board

Find the final connectivity of a complete EXT3-Giant with large size of EPD below. Please follow the arrow mark on Connector board to connect with 9.7” or 12” EPD.

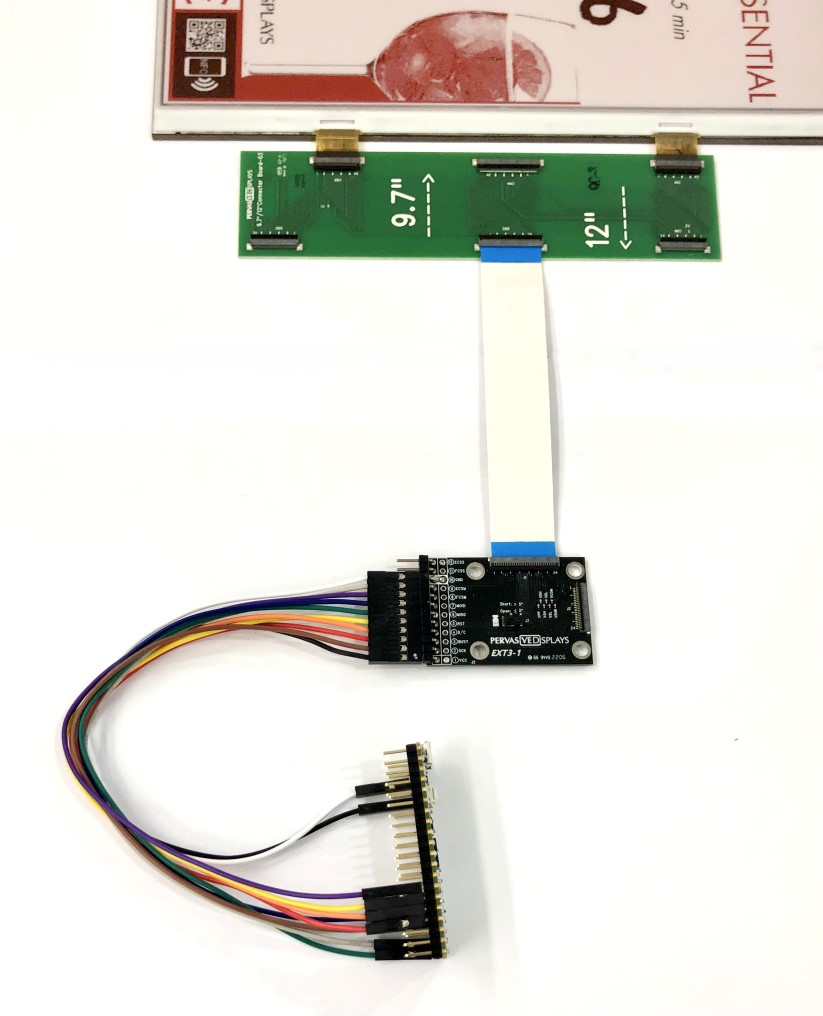

The connectivity of a complete EXT3-Giant with 9.7" EPD and Raspberry Pi Pico board
