Schematic

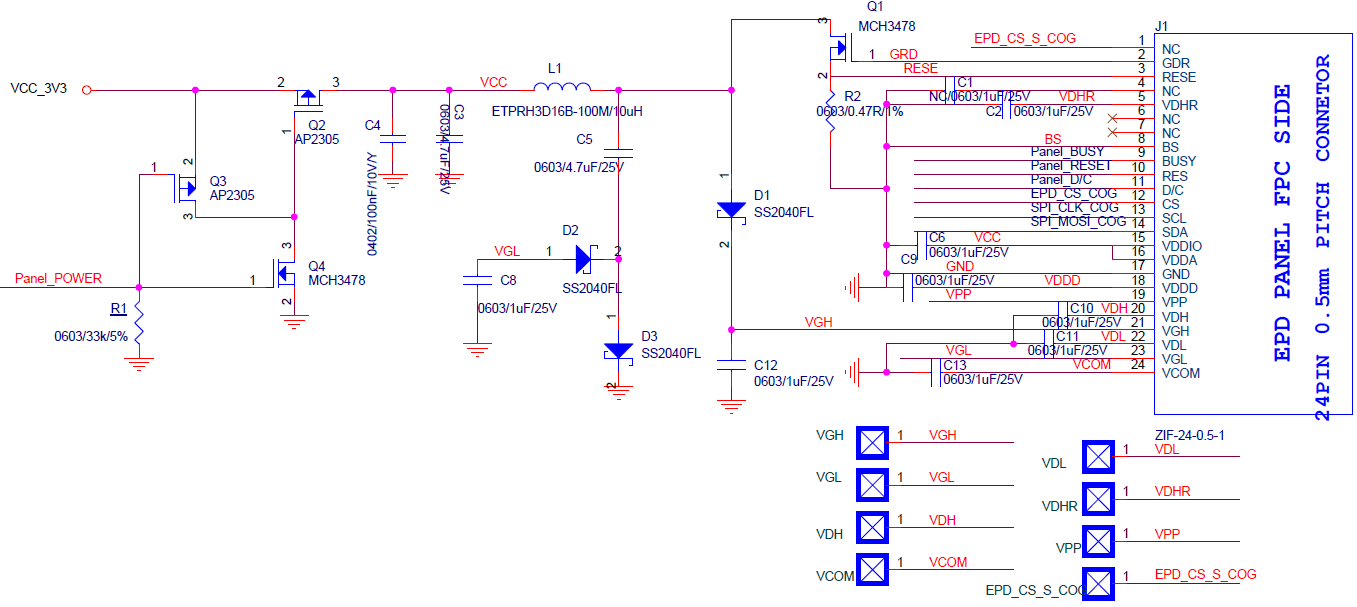

EPD Driving Circuit

Your EPD should connect with 24-pins (J1) of ZIF connector.

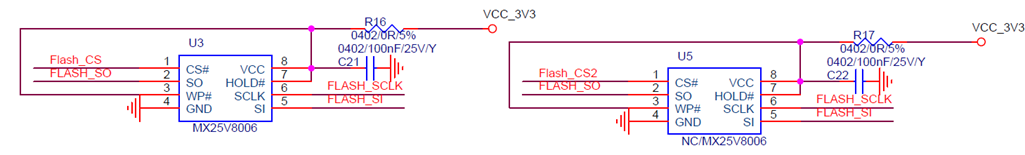

Flash memory

Info

The U2 is not populated (NC). If you would like to use other memory chip (e.g. SRAM or FRAM or larger Flash), you could populate the chip on U2 and control by the FLASH_CS_S slave pin to work with this chip.

Peripherals

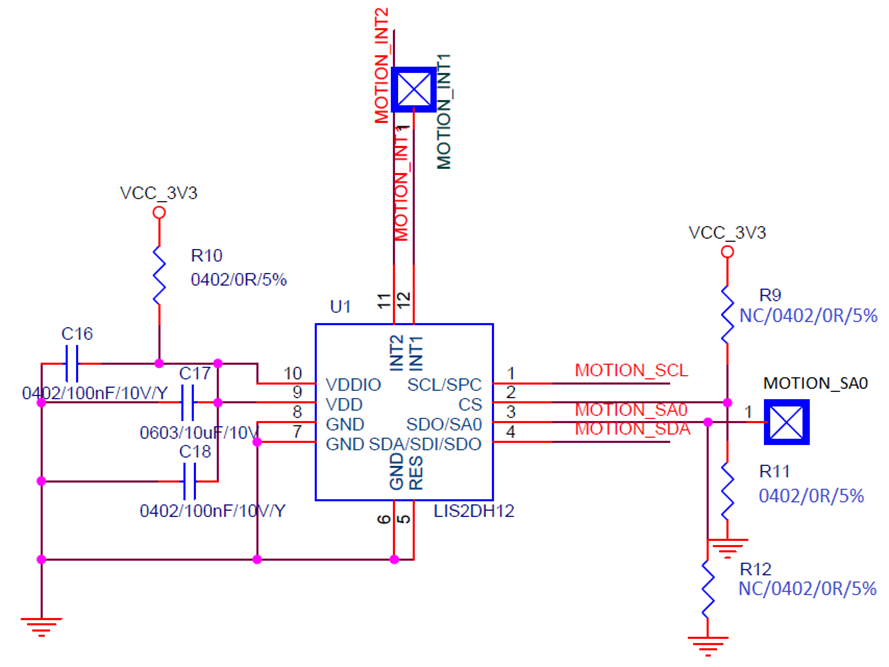

Accelerometer

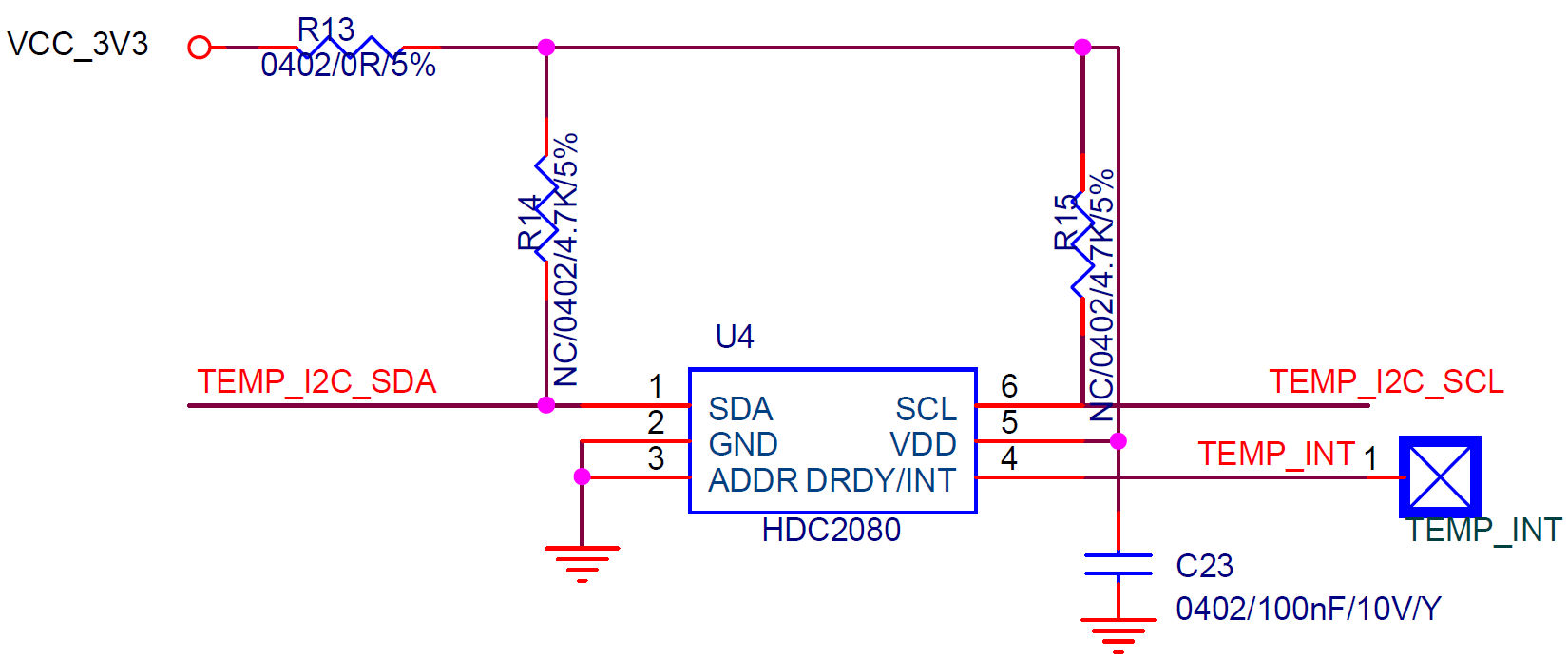

Thermometer and Hygrometer

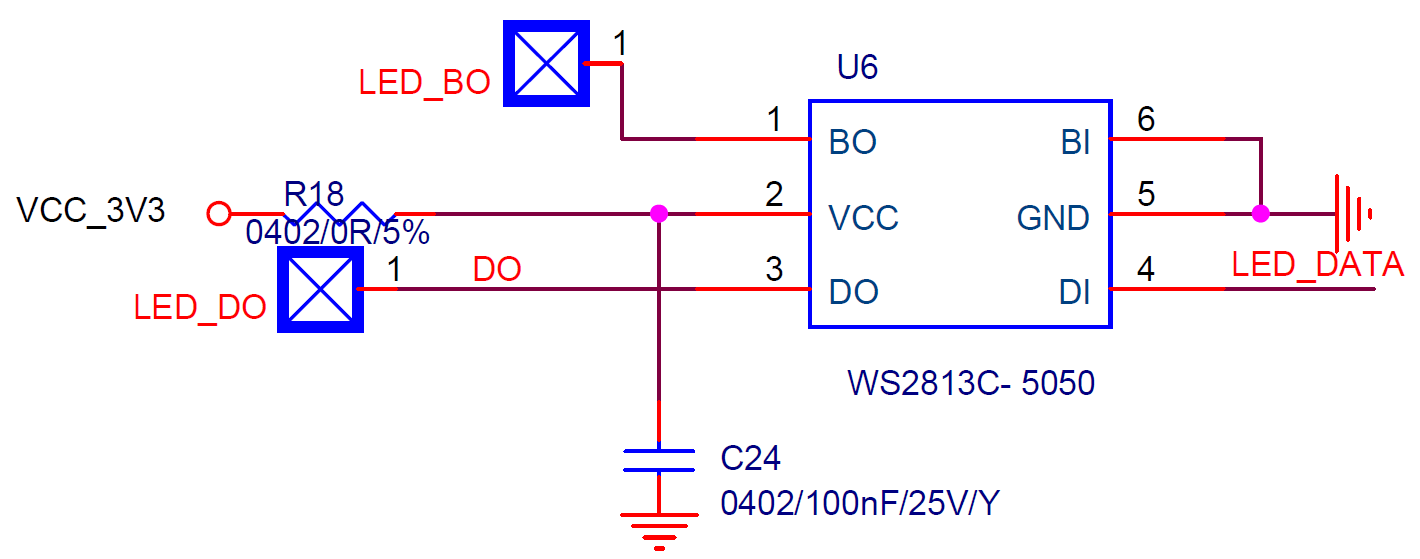

LED

NFC

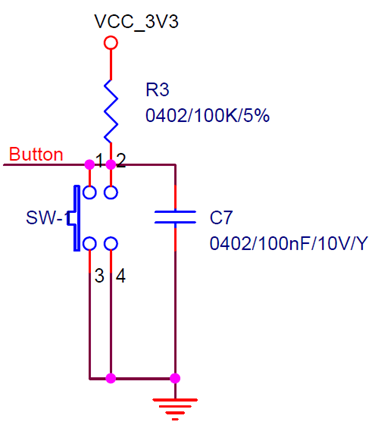

Button

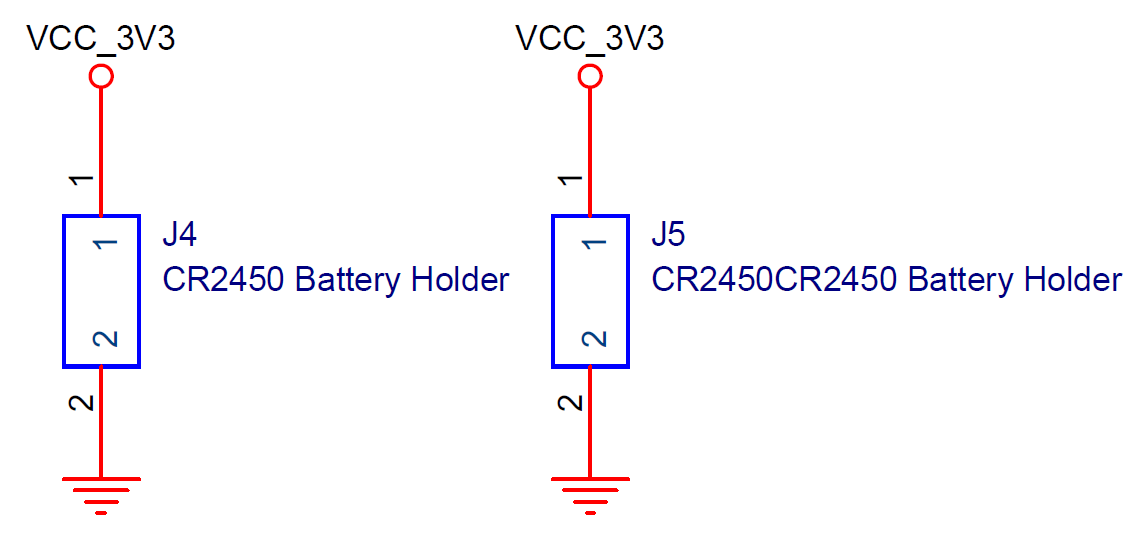

Power

Test Points/Interface

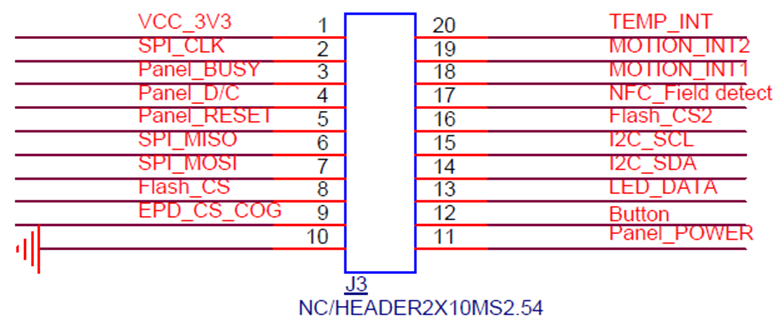

90-degree header for external interfacing

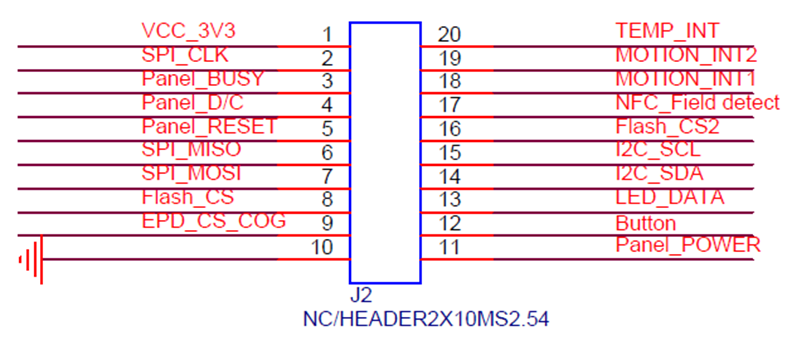

Test points for J2 header
