Board Layout

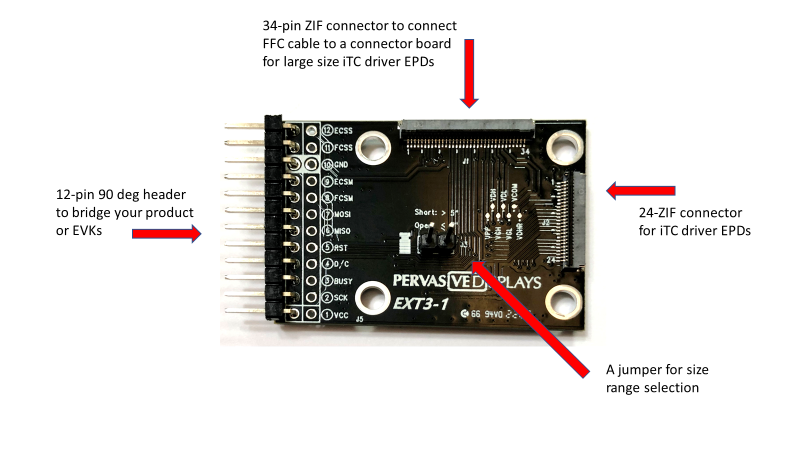

EPD Extension Kit Generation 3 revision 1 (EXT3-1 Kit) provides a 10-pin bridging cable to any of your chosen development board or current design platform. It has a 12-pin right angle header bundled together with a 10-pin * 1 pcs + 1-pin * 2 pcs of color-coded cables for easy interfacing with any development board.

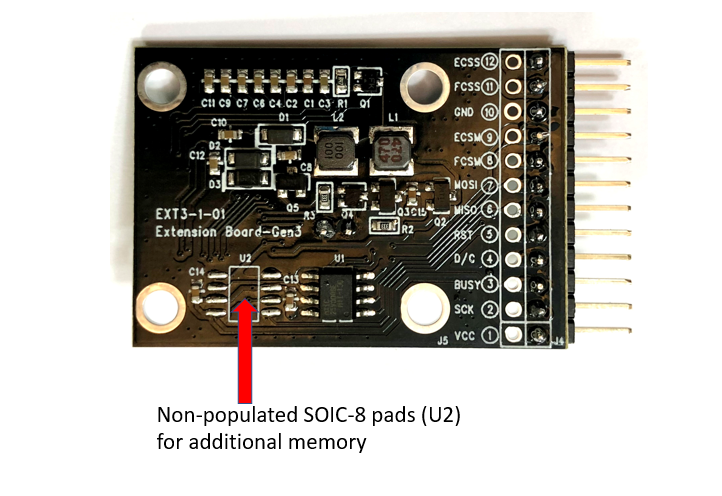

The kit has 8 Mbits of Flash memory with an allocated SOIC-8 slot for memory expansion.
