Kit Contents¶

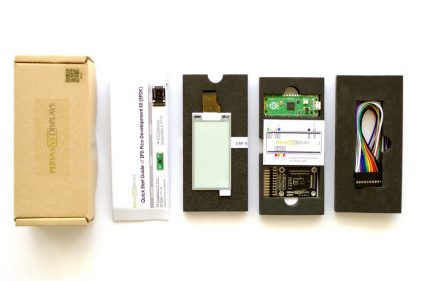

Each EPDK kit contains
| Item | Preview |
|---|---|
| 1x Raspberry Pi Pico RP2040 with 40 header pins soldered |  |
| 1x 2.66” Aurora Mb Black & White (E2266PS0C) | .png) |

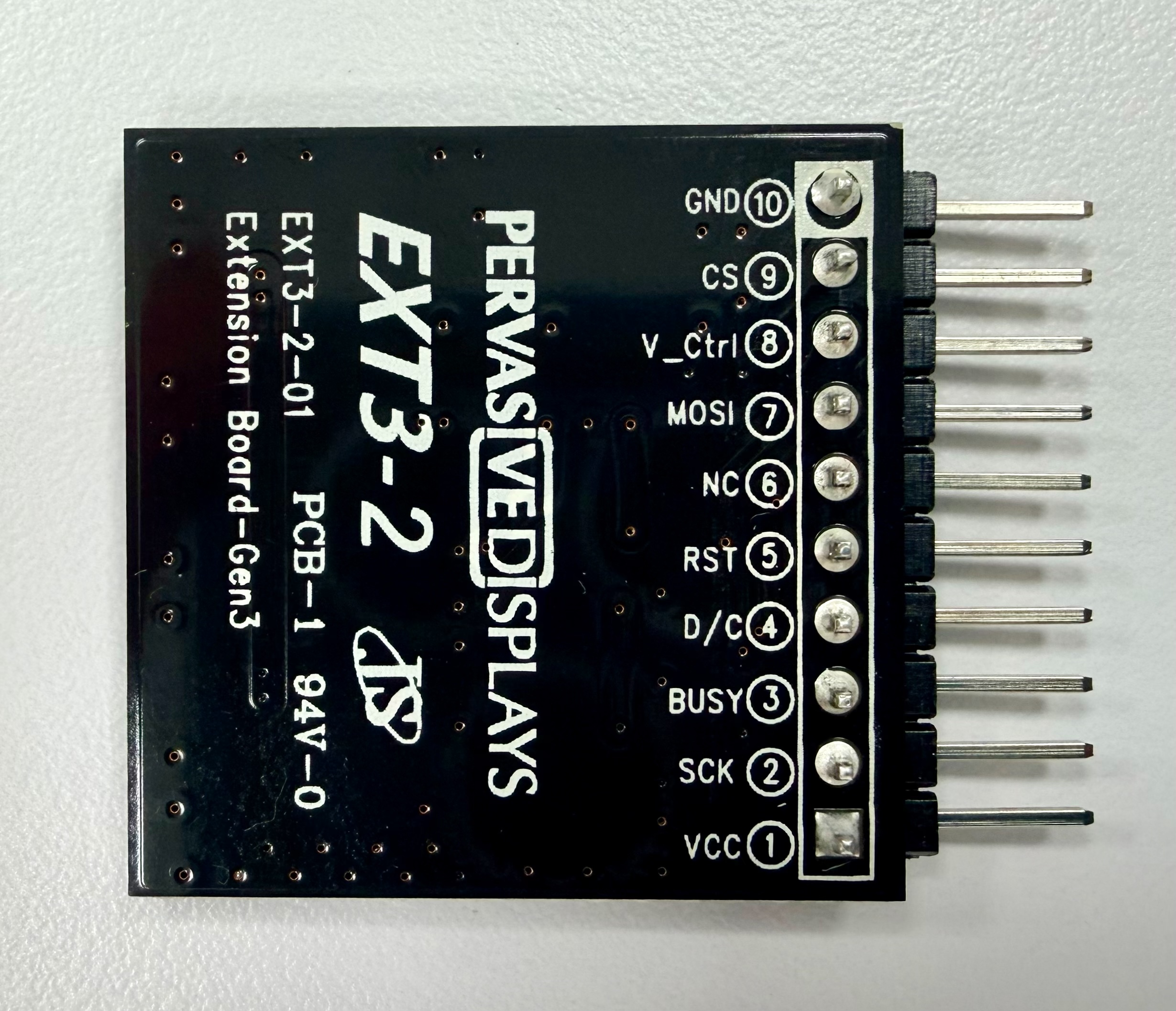

| 1x EPD Extension board Gen 3 (EXT3-1) or 1x EPD Extension board Gen 3 v2 (EXT3-2) |
.png)  |
| 1x 20-pins bridging cable | .png) |
.png)
Prerequisites¶
For a first demo of this EPDK, it is necessary to follow these steps:
- Prepare one micro-USB cable, which is not included in the kit.
- Download the Raspberry Pi Pico demo firmware and extract the UF2 file
- With EXT3-1
- Unzip to extract the Demo266_PicoReader.ino.rpipico.uf2 file and save it in your PC.
- With EXT3-2
- Unzip to extract the Demo266_PicoReader_EXT3-2.ino.rpipico.uf2 file and save it in your PC.
- With EXT3-1
