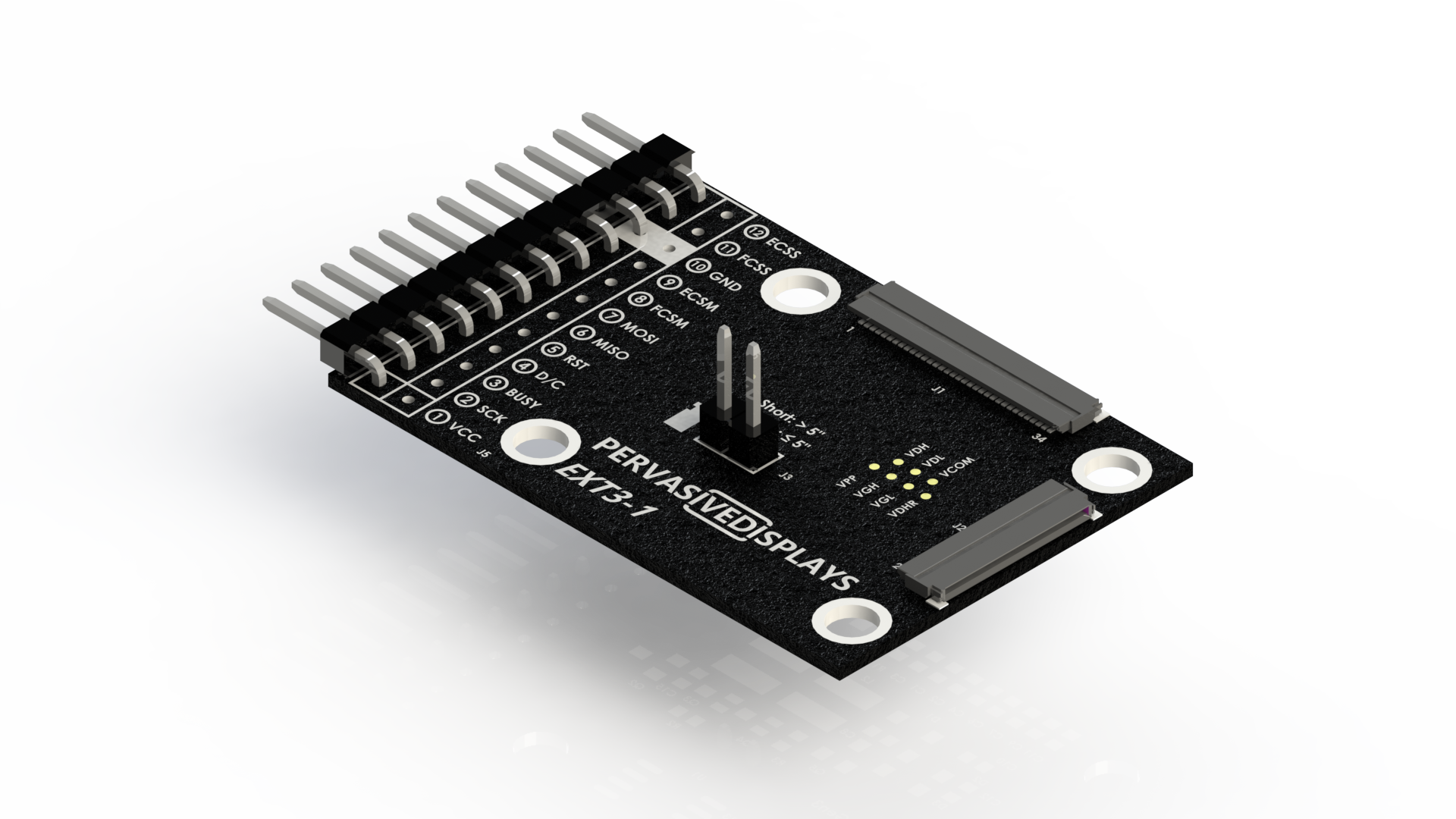

EXT3-1

EPD Extension Kit Generation 3 revision 1 (EXT3-1 Kit) is our “most recommended” extension board to connect with your product to kick-start low power display application with iTC driver type of EPDs.

The EXT3-1 kit supports driving 1.52“ to 12” EPDs with iTC driver IC (a connector board is required to work with 9.7“ and 12” via EXT3 Giant). It has an onboard driving circuit to easily develop the user’s EPD applications.

In offering a variety of expansion options to meet the user’s development needs, PDi offers several open driving source codes, design resources, and development libraries such as for graphic and interactive capabilities (EXT3 Touch).
