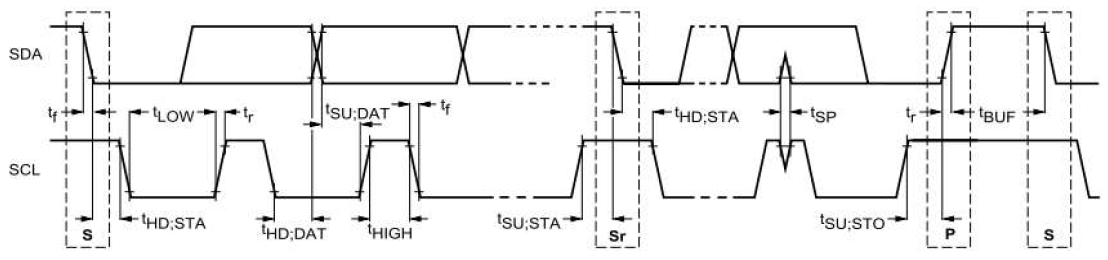

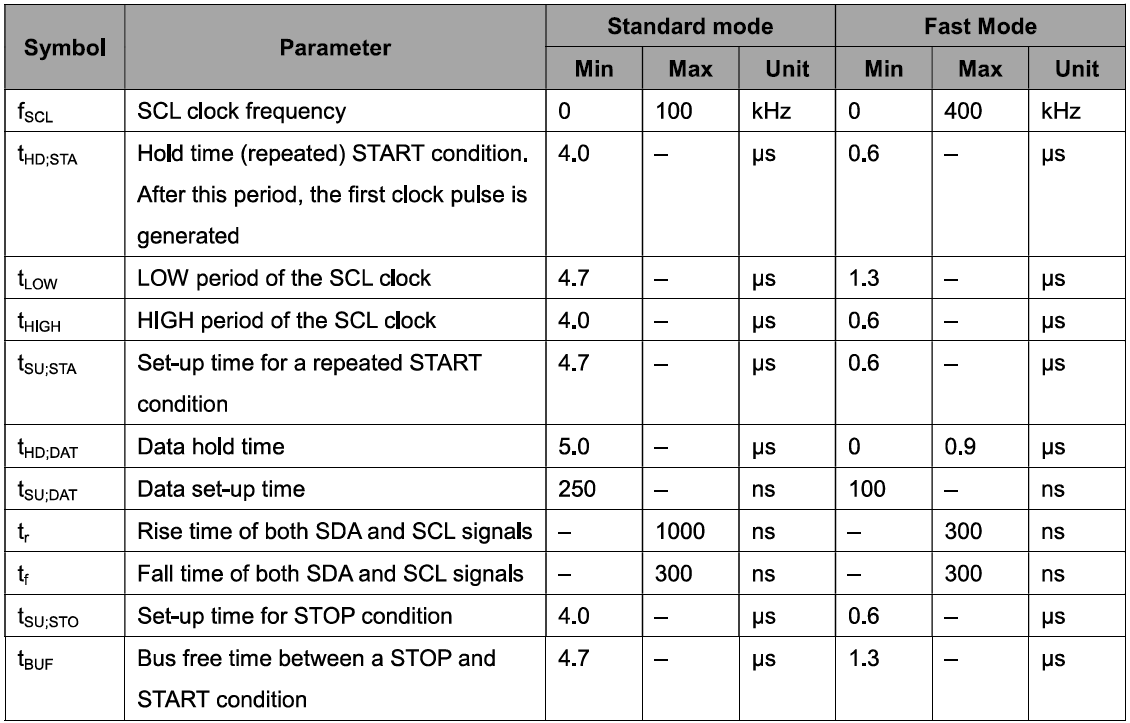

I2C Timing Format

The touch controller is rated for 200 kHz and thus support the I²C standard mode at 100 kHz. Fast mode is 400 kHz. The controller supports 1.8V or VDD level power. The clock and data lines need recommended pull-up resistances of 2.0k-10k ohm.
